ORAN stands for Open Radio Access Network. It is a new approach to building mobile networks that is based on the principles of open interfaces, SDN or software defined networking, and virtualisation. The goal of ORAN is to create a more flexible and efficient mobile network architecture that can adapt to changing user needs and traffic patterns. Open RAN (O-RAN) stakeholders aim to revolutionise radio access networks (RANs) by replacing centralised signal processing units with closed interfaces with flexible, plug-and-play virtual architectures featuring open APIs. If successful, this approach could promote diversity in supply chains and lower costs by enabling the use of multiple vendors and software-defined RAN architectures. Despite the potential benefits, service providers remain cautious about O-RAN due to its lack of maturity. There are concerns about the practicality of a distributed, multivendor approach in real-world networks, as well as questions about whether it can deliver the necessary performance and robustness for 5G use cases while avoiding new security risks. Additionally, there is uncertainty around whether a more complex supply chain will actually result in reduced costs. Overview of ORAN ArchitectureORAN (Open Radio Access Network) is a network architecture designed to provide greater flexibility, scalability, and interoperability to radio access networks. The ORAN architecture is composed of several components, including Radio Units (RU), Distributed Units (DU), Centralised Units (CU), and Radio Intelligent Controllers (RIC) as shown in the figure below. Logical Architecture of O-RAN

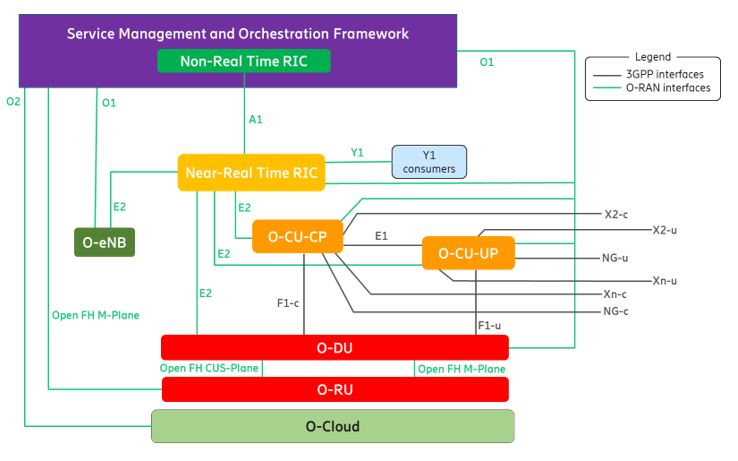

In the ORAN architecture, the interfaces between the different components are based on standardised protocols, which enable greater flexibility and interoperability. This allows network operators to mix and match components from different vendors, reducing dependence on a single vendor and promoting innovation and competition. Additionally, the ORAN architecture can be deployed in a variety of deployment scenarios, including on-premise and in the cloud, enabling greater scalability and cost-effectiveness. The Benefits of ORANThe radio access network (RAN) industry has been dominated by a few large vendors with proprietary interfaces, resulting in a lack of flexibility, interoperability, and innovation. ORAN promises to change that by introducing a multivendor, open architecture with plug-and-play capabilities and open APIs. ORAN has the potential to transform the wireless industry by providing a more open, flexible, and cost-effective approach to building and operating mobile networks. The benefits of ORAN include:
The Challenges of ORANWhile ORAN offers numerous benefits, it also faces several challenges that need to be addressed. Some of these challenges include:
While ORAN offers many potential benefits, addressing these challenges will be critical for its widespread adoption and success. One of the key concerns is cybersecurity so lets take a closer look. ORAN Security VulnerabilitiesORAN is an emerging technology that aims to create more open and interoperable standards for mobile networks. While ORAN has the potential to improve the efficiency and flexibility of mobile networks, it also presents a range of security vulnerabilities that must be addressed to ensure the security and stability of the network. Here are some key security vulnerabilities of ORAN:
Securing ORAN requires a comprehensive approach that addresses a range of cybersecurity threats and vulnerabilities. This includes implementing strong access controls, regularly monitoring network activity, conducting regular security audits, and staying up-to-date with the latest security threats and best practices. By taking proactive steps to secure ORAN, providers can help to ensure the stability and security of mobile networks and protect against potential cyber threats. ORAN Testing RequirementsThe testing requirements of ORAN are critical to ensure that different hardware and software components from different vendors work seamlessly together and comply with the specifications defined by ORAN. Some of the testing requirements of ORAN include:
Ensuring that ORAN networks meet the required testing requirements is critical to ensure that they are reliable, secure, and performant. This requires a comprehensive testing strategy that includes both laboratory testing and field testing under different scenarios and conditions. Automation of ORAN: Build, Test, DelpoyCI/CD/CT pipeline automation for ORAN refers to the process of automatically building, testing, and deploying ORAN software updates. ORAN is an open-source software-defined radio access network architecture that aims to provide more flexibility, openness, and innovation in the 5G ecosystem. Continuous Integration (CI) refers to the process of continuously integrating code changes into a shared repository, ensuring that the changes do not break the build. This involves building the code and running automated tests to catch any errors as soon as possible. Continuous Delivery (CD) refers to the process of continuously delivering software changes to production-like environments, ensuring that the software can be released at any time. This involves automating the deployment process, so that releases can be made quickly and reliably. Continuous Testing (CT) refers to the process of continuously testing software throughout the development lifecycle, from development to production. This involves automated testing of the software to identify defects and vulnerabilities as soon as possible. To automate the CI/CD/CT pipeline for ORAN, various tools can be used, including:
Overall, CI/CD/CT pipeline automation for ORAN is essential for ensuring that software updates are delivered quickly and reliably while maintaining the quality and reliability of the network. Challenges of CI/CD/CT Pipeline AutomationContinuous Integration - Continuous Deployment - Continuous Testing (CI/CD/CT) automated pipelines are used to automate the software development process in the ORAN infrastructure. However, there are several challenges that are associated with implementing CI/CD/CT pipelines for ORAN. These include the following:
Addressing these challenges is critical to ensure that CI/CD/CT pipelines for ORAN are effective and efficient. This requires a comprehensive approach that includes standardisation, testing automation, and the development of specialised skills and expertise. Addressing the CI/CD/CT Pipeline ChallengesThere are several strategies that can be used to overcome the challenges associated with implementing CI/CD/CT Pipeline Automation for ORAN including:
Addressing the challenges associated with implementing CI/CD/CT Pipeline Automation for ORAN requires a comprehensive approach that includes standardisation, testing automation, continuous integration and deployment, and collaboration. By adopting these strategies, organisations can overcome the challenges associated with ORAN development and deployment and achieve the benefits of automated software development and deployment. For more information about CI/CD/CT pipeline automation, check out my previous article on The Power of Automation: Implementing a CI/CD Pipeline. ConclusionIn conclusion, ORAN has the potential to revolutionise the radio access network (RAN) industry with its promise of increased scalability, improved 5G use case performance, and reduced costs. With its distributed, multivendor approach and open APIs, operators anticipate diversified supply chains and lower costs through flexible, software-defined RAN architectures. However, there are concerns about ORAN's lack of maturity and whether its distributed, multivendor approach will be practical in real networks. Service providers also need to implement test solutions to ensure that ORAN will perform as well as or better than a traditional, monolithic RAN. Interoperability between different vendor units, seamless feature working across different units, and security risks are some of the challenges that need to be addressed. Integrated end-to-end testing, automation, and collaboration between different vendors and service providers can help overcome these challenges, ensure the success of ORAN, and provide new opportunities for innovation and growth in the RAN industry. Overall, the benefits of ORAN far outweigh the challenges, making it a promising technology for the future of wireless communications.
1 Comment
The key advantage of Segment Routing is its ability to eliminate the need for complex and costly protocols, such as MPLS, to achieve traffic engineering and network programmability. Instead, Segment Routing leverages the existing IP routing infrastructure, enabling network operators to define and manage network paths dynamically, without the need for additional signaling protocols. In Segment Routing, the network operator defines the network path that a packet will follow by creating a sequence of segment identifiers, which are added to the packet header. These segment identifiers can represent any network segment, including links, routers, and services. When the packet reaches a router in the network, the router examines the next segment identifier in the packet header and forwards the packet to the appropriate next-hop router based on that identifier. Overall, Segment Routing offers a flexible and efficient approach to network routing, enabling network operators to achieve better traffic engineering, network programmability, and network optimization. Segment Routing v MPLSSegment Routing (SR) and Multiprotocol Label Switching (MPLS) are both network technologies that can be used to enable traffic engineering and path optimization in IP networks. However, there are several key differences between the two technologies, including:
Overall, SR and MPLS are both effective technologies for enabling traffic engineering and path optimization in IP networks. However, SR is generally considered to be simpler, more scalable, and more flexible than MPLS, particularly in large and complex networks. Benefits of Implementing Segment Routing
Challenges of Implementing Segment Routing
Overall, implementing Segment Routing in telco networks requires careful planning, investment, and ongoing management to ensure that its benefits are realized while mitigating any potential challenges. Despite the availability of newer technologies, such as Software-Defined Networking (SDN), MPLS remains a popular choice for many service providers due to its proven reliability and ability to support a wide range of services. MPLS enables service providers to offer a variety of services such as Virtual Private Networks (VPNs), Quality of Service (QoS), and traffic engineering. MPLS works by adding a label to packets as they enter the network, which is used to determine how the packet should be forwarded through the network. This label-based forwarding allows for faster and more efficient routing of packets, making MPLS ideal for networks that require high levels of performance and reliability. Each label corresponds to a specific path or route through the network, which is determined by a series of label-switching routers (LSRs). As data packets traverse the network, they are forwarded from one LSR to the next based on the labels attached to them, rather than being routed based on their IP addresses. This makes MPLS an efficient way to route data packets across a network, as it avoids the need for repeated IP lookups and reduces the processing overhead on routers. Technology Components of MPLSThe key components of an MPLS network include:
Benefits of MPLS in Telco Networks
Challenges of MPLS in Telco Networks
In summary, MPLS offers a number of benefits for telco networks, including improved network performance, traffic engineering, QoS, scalability, and security. However, implementing and managing an MPLS network can be complex and expensive, and telcos need to ensure that they are addressing the challenges associated with MPLS, such as interoperability and network resilience.
XGS-PON uses a single fiber-optic cable to transmit data from a central location, called an optical line terminal (OLT), to multiple endpoints, called optical network units (ONUs). The ONUs are located at the customer premises and act as the interface between the optical network and the customer's devices. XGS-PON can support symmetrical bandwidths of up to 10 Gbps downstream and 10 Gbps upstream, making it capable of delivering high-speed internet access, high-definition video streaming, and other bandwidth-intensive applications. This is achieved through the use of advanced modulation techniques, such as 64-QAM and 256-QAM, which increase the amount of data that can be transmitted over the network. Another key feature of XGS-PON is its ability to support multiple virtual network operators (VNOs) on a single physical network, allowing service providers to offer differentiated services to different customer segments while sharing the same infrastructure. XGS-PON also supports time-sensitive networking (TSN) protocols, which enable the network to prioritize and guarantee quality of service (QoS) for real-time applications, such as voice and video conferencing. Overall, XGS-PON provides a high-performance and scalable solution for service providers to meet the growing demand for high-speed broadband services. Benefits
Challenges |
FTTx (Fiber to the X) is a term used in the telecommunications industry to describe the deployment of fiber optic cables to various points (or "X") in the network. The "X" can refer to a number of different locations, such as the home (FTTH), the building (FTTB), the curb (FTTC), or the node (FTTN). |
5G-NTN (Non-Terrestrial Networks) integration refers to the integration of 5G wireless networks with satellite and other non-terrestrial networks. This integration aims to provide seamless connectivity and extended coverage to areas that are not currently served by terrestrial networks, such as remote areas, ships, airplanes, and other mobile platforms. |
